YYachts Y9 Carbon Yacht
Create your own superyacht.
Our Y9 is as unique as itself. Above all, he is as individual as each of his clients, because his structure and equipment are completely variable. In addition, the Y9 sailboat offers the volume of a 100-foot boat in only 90. Likewise, it is available in 3 versions, the Y9, the Y9 Pilot House and the Y9 Custom.
The main objective of the Y9 owners is to spend time with family and friends on board. As a result, the 90-foot carbon sailboat is an easy boat to sail, even with a short crew. Her interior design meets and exceeds the owner’s desire to have a family boat with enough privacy while cruising the world. Of course, the Y9 carbon yacht also demonstrates its potential on the Mediterranean or Caribbean racing courses, sailing on the front line of the race and being a formidable opponent.
Like all YYachts sailboats, the Y9 yacht follows the clear design philosophy of reducing all superstructure and unnecessary components, creating a clean and minimalist deck: Keep it simple, look good and sail nicely.
Advantages of the Y9 yacht
Easy handling
On the Y9 yacht all halyards and sheets run hidden towards the steering positions, so that the helmsman can steer the Y9 yacht alone at any time.
Proven technology
YYachts only uses components that have been tested hundreds of times. Days lost due to vulnerable technology are unacceptable on this luxury 90-foot carbon yacht.
Effortless luxury
Our yachts provide you and your family with a worry-free experience. The Y9 yacht takes advantage of YYachts’ learning from the Y7 and Y8 and takes the whole thing to the highest level.
Lightweight construction
Using carbon fiber and lightweight construction materials on the interior, YYACHTS yachts achieve a high displacement/sail area ratio.
Variable interior design and layout.
Thanks to our modular construction, the layout can be adapted cost-free to the owner’s wishes. For example, the forward and aft living areas can be divided below deck, or the number of guest cabins can be chosen (up to 4).

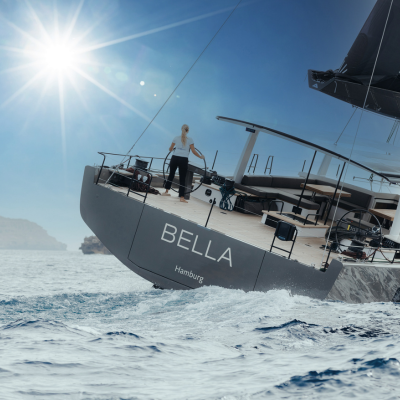

YYacht Y9 exterior

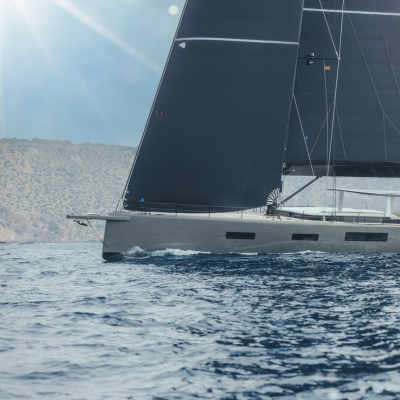

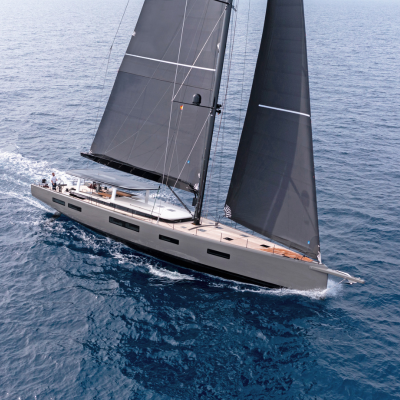

The exterior of the Y9, designed by Bill Tripp, is characterized by elegant lines. Its sail area of more than 1,000m2 allows it to reach speeds of 26 knots and a spacious cabin but with short distances in the command stations guarantees fun sailing.

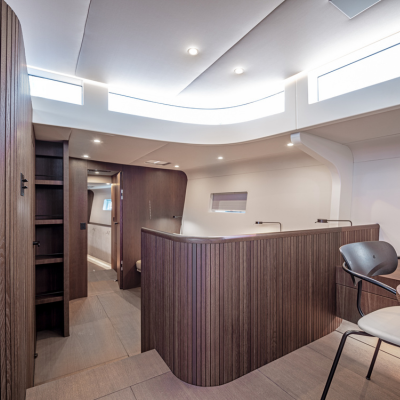

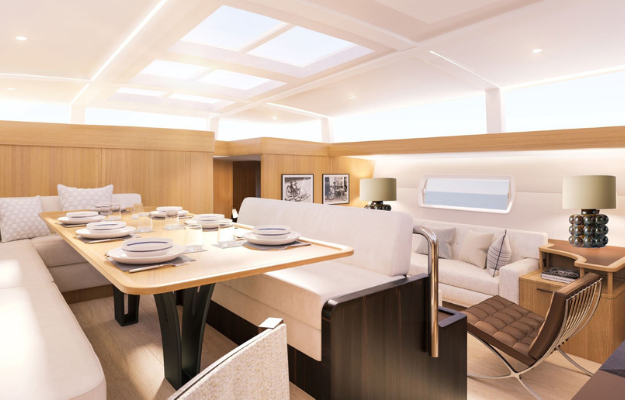

YYacht Y9 interior

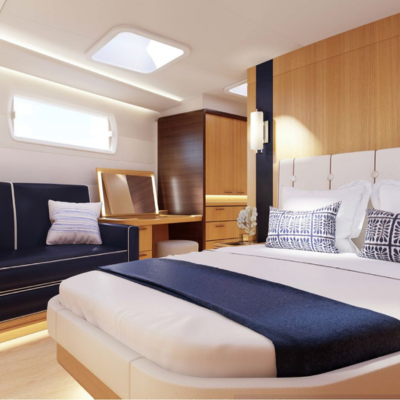

The interior of the YYachts Y9 sailboat is 100% customizable according to your wishes. Be inspired by the design of renowned studio Norm Architects while our design team will coordinate any wishes you have regarding style, interior organization and decoration.
Get to know the Y9 luxury sailboat in depth

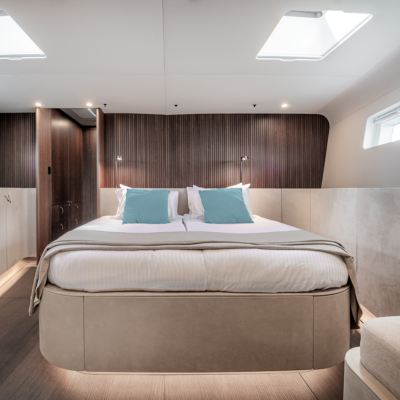

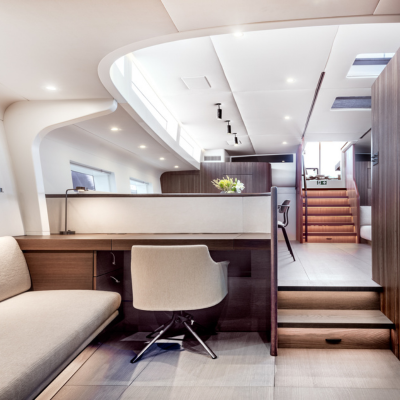

Interior layout
The spaciousness of a 100 foot sailboat has been achieved in a 90 foot boat by implementing many years of design and construction experience – The owner has the maximum level of privacy in his own loft depending on the configuration. Likewise, it can have up to three guest cabins. Furthermore, great importance has been given to the design of the crew area, following an unwritten rule in yachting, “Happy crew, happy owner”.
There are several layout options available for the Y9 in addition to numerous optional interior furnishings. The YYachts team will work with each owner to customize the interior; Likewise, you can select your own interior designer for the project.
Technical specifications.
Lenght overall (LOA): aprox. 29.71m.
Lenght Waterline (LWL): aprox. 26.04m.
Draft (fixed keel): aprox. 4,70m.
Optional: Shallow draft (Fixed keel): aprox. 4.10m.
Optional: Draft (Telescopic keel): entre 3.20m y 4.80m.
Beam: aprox. 6.80m.
Displacement (Light ship): aprox. 55t.
Ballast (fixed keel): aprox. 18.92t.
Optional: Ballast (Shallow draft fixed keel): aprox. 19.92t.
Optional: Ballast (Shallow draft telescopic keel): aprox. 19.18t.
Engine: 2x VOLVO D4175
Fuel tank capacity: aprox. 3.000l.
Fresh water tank capacity: aprox. 2.000l.
Grey water tank capacity: aprox. 250l.
Black water tank capacity: aprox. 250l.
Mainsail Area: aprox. 242m2.
Self-tacking jib: aprox. 171m2.
Code 0 Area: aprox. 388m2.
Gennaker Area: aprox. 617m2.
Naval architect: Tripp Design
Interior design: Norm Architects/Design Unlimited/Winch Design
Shipyard: YYACHTS GmbH
Lenght overall(LOA): aprox. 29.71m.
Lenght waterline (LWL): aprox. 26.04m.
Draft (fixed keel) aprox. 4.70m.
Optional: Shallow draft (fixed keel): aprox. 4.10m.
Optional: Draft (telescopic keel): Between 3.20m/4.80m
Beam: aprox. 6.60m.
Displacement (Lightweight ship): aprox. 55.5t.
Ballast: aprox. 18.92t.
Optional: Ballast (Shallow drift fixed keel): aprox. 19.92t.
Optional: Ballast (Telescopic): aprox. 19.18t.
Engine: 2x VOLVO D4175
Fuel tank capacity: aprox. 3.000l
Fresh water tank capacity: aprox. 2.000l
Grey water tank capacity: aprox. 250l
Black water tank capacity: aprox. 250l
Mainsail Area: aprox. 242m2.
Self-tacking jib: aprox. 171m2.
Code 0 Area: aprox. 388m2.
Gennaker Area: aprox. 617m2.
Naval architect: Tripp Design
Interior design: Norm Architects/Design Unlimited/Winch Design
Shipyard: YYACHTS GmbH
Contact us
Customer service for us is as important as the construction of the yacht. That is why we have a commercial team in Palma de Mallorca that will advise you if you are thinking of buying a sailboat in Spain.
